PVC top hung and pivot windows
ENERGY-EFFICIENT DESIGN
- Advanced design to ensure two opening methods:
- top hung up to 45° to result in better use of an additional attic space.
- pivot allowing the sash to be rotated through 180°.
- Innovatory hardware system guarantees complete sash stability in both opening functions. The opening method can be changed using the switch placed in the bottom section of the frame which is accessible after opening the window.
- Multi-chamber PVC profiles are strengthened from the inside with galvanised steel. Profiles are made on the basis of calcium and zinc stabiliser.
- Profile corners are manufactured using the V-PERFECT technology to secure extraordinary durability and impeccable aesthetics.
- The window is durable, resistant to corrosion and varying weather conditions, while its maintenance is reduced to an absolute minimum.
- The material used does not absorb moisture and features high resistance against acids and alcohols.
- Easy window operation by means of the new handle situated in the base of the sash and featuring two-step micro-opening.
- The hinge situated in the middle of the window enables the sash to be rotated and left open.
- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
EASY TO KEEP CLEAN
- External glass with easy maintenance layer.
- The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.
INCREASED SAFETY
- Toughened external glass with lifetime hail resistance warranty.
- Increased burglary resistance thanks to patented topSafe system.
FUNCTIONAL ACCESSORIES
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-55°
- window in a special version installed in pitches from 55°-85°
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Designed for rooms with increased air humidity, where moist air remains for a longer period.
- Recommended for buildings where particular emphasis is placed on saving thermal energy.
-

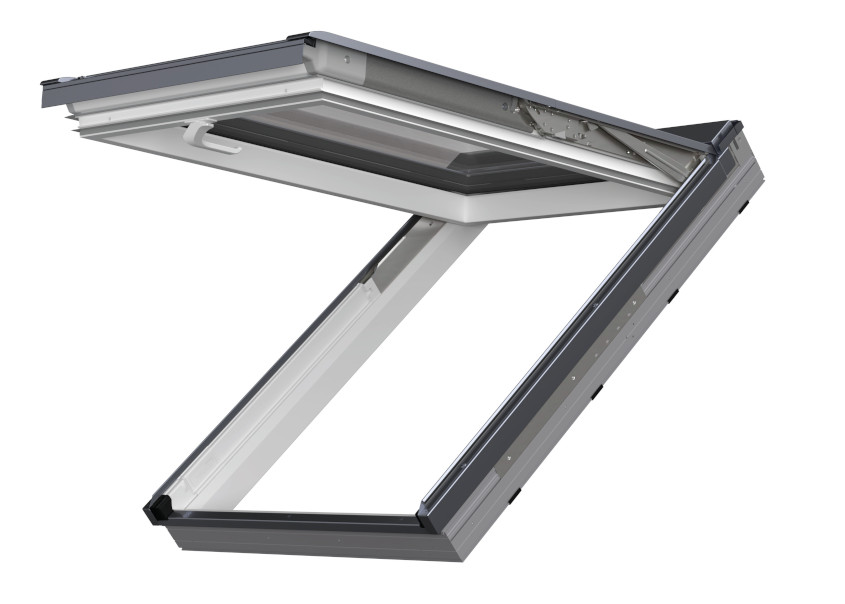

PPP-X MAX P50 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PPP-X MAX P50 ABMX
- 1.0 W/m²K || 0,90 W/m²K with Thermo flashing trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) 40 dB isolamento acustico Rw + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet. With air inlet upon request. tipo di ventilazione + microapertura
-
-
PPP-V MAX U41 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PPP-V MAX U41 ABMX
- 1.1 W/m²K ||1.0 W/m²K with Thermo flashing trasmittanza termica Uw 0.60 W/m²K trasmittanza termica Ug (secondo EN 673) 35 dB isolamento acustico Rw + verto esterno temperato no vetro esterno con pellicola autopulente no vetro interno laminato (sicuro) With air inlet. With no air inlet upon request. tipo di ventilazione + microapertura
-
