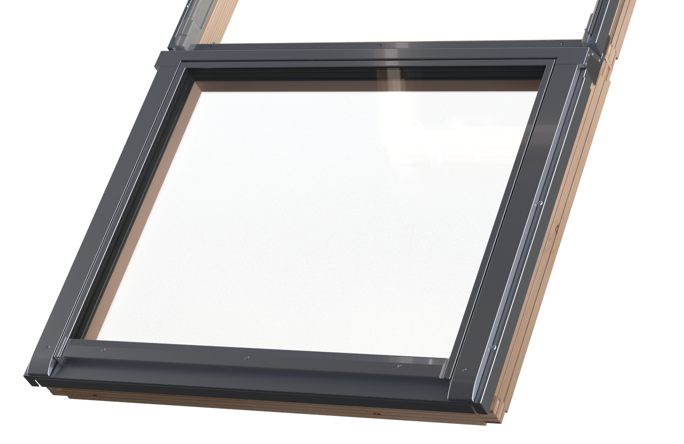

Non-opening combination windows
ENERGY-EFFICIENT DESIGN
- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
- Quadruple sealing system provides additional tightness in extreme weather conditions and reduces micro vibrations of the cladding profiles during heavy rain.
- Highly energy-efficient, double-chamber P50 glazing unit, Ug=0.55 W/m²K.
- Recommended for buildings where particular emphasis is placed on saving thermal energy.
EASY TO KEEP CLEAN
- P50 glazing unit with easy maintenance layer.
- The perfectly smooth surface of FXU windows, coated with three layers of polyurethane varnish.
INCREASED SAFETY
- topSafe system – increased operational safety and burglary resistance.
- The internal glass is laminated and features anti-burglary P2A class.
- Toughened external glass with lifetime hail resistance warranty.
- Soundproof glass effectively reduces noise transmission.
FUNCTIONAL ACCESSORIES
- A narrow connecting strips enhances aesthetics and field of view.
- A special external cladding element is screwed to the sash in the upper roof window.
- Special connecting modules: KDV-X AX00 – for flashings with no insulation, KDV-XT AX00 – for flashings in the THERMO version.
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-90°
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Non-opening window installed exclusively beneath a standard roof window.
- Recommended as an additional lighting element in vertical combinations.
-
FXP P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FXP P50 APMX
- 1.0 W/m²K trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) Triple-glazed unit vetrocamera + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet. With air inlet upon request. tipo di ventilazione twice verniciatura del legno + microapertura
-
