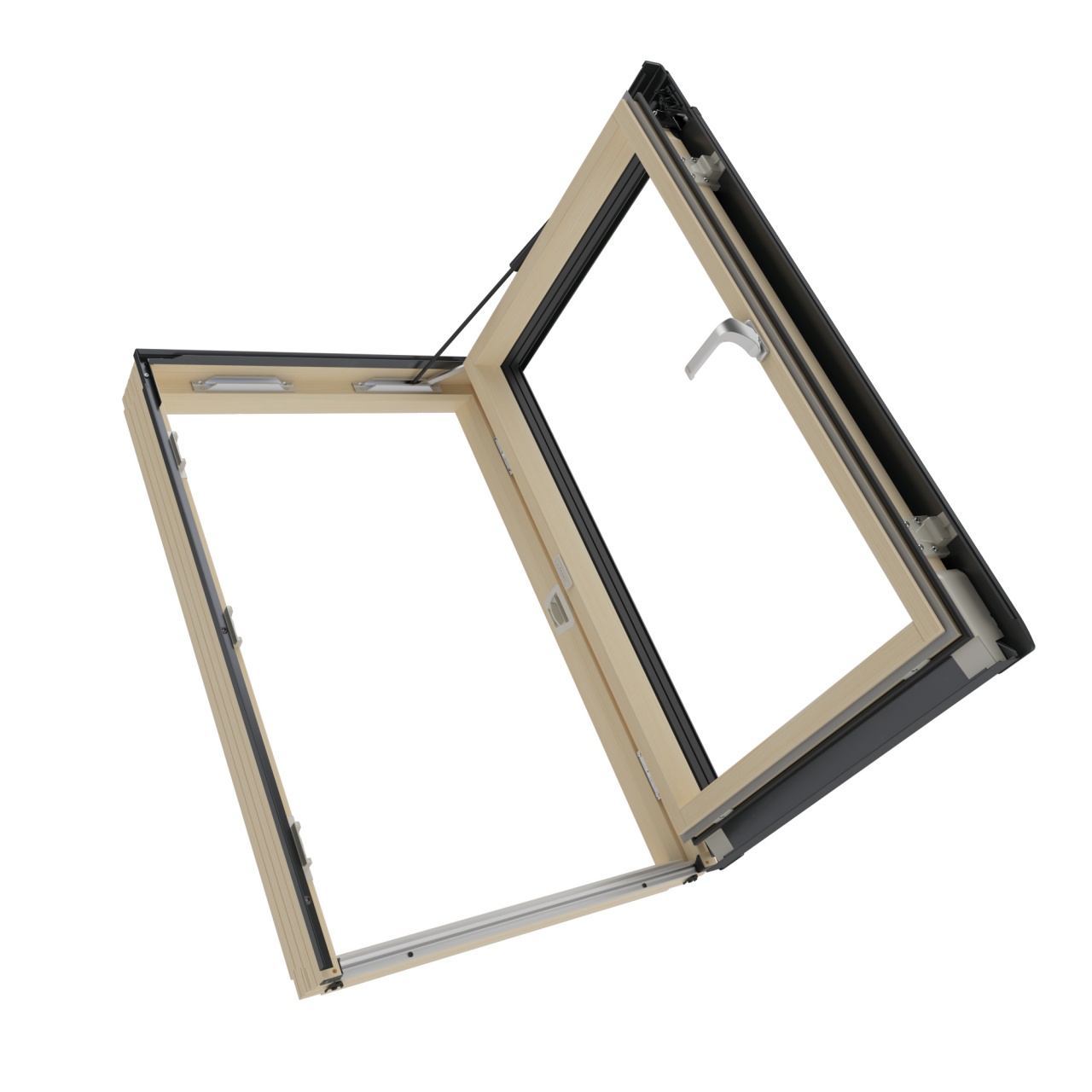

Side hung escape window
DESIGN
- Combination of a roof window and an access roof light to provide quick, safe and easy access to the roof as well as ingress of natural light and room ventilation.
- Universal design as the opening side can be changed before installation. Available with a factory pre-fixed right-opening side. It is possible to order FWP/L version - left.
- Equipped with a gas actuator placed in the upper part which makes opening and closing easier, holds the sash stable and prevents it against accidental closure.
- The GREENVIEW window is made of top quality pinewood and vacuum impregnated (FWP) or multi-chamber PVC profiles in white colour and strengthened from the inside with galvanised steel (PWP).
- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
FUNCTIONAL ACCESSORIES
- Wide range of internal accessories the same as for roof windows. Selected external accessories are available upon request.
INSTALLATION
- The same flashings are used for side hung escape window installation as for roof windows. As a result, both window types can be installed in one combination.
INSTALLATION RANGE
- 15-55°
THREE CLADDING COLOURS TO CHOOSE FROM
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Heated rooms in the attic.
-
FWP P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FWP P50 APMX
- 1.1 W/m²K trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) Triple-glazed unit vetrocamera + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet tipo di ventilazione twice verniciatura del legno
-
-
FWP U41 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FWP U41 APMX
- 1.1 W/m²K trasmittanza termica Uw 0.60 W/m²K trasmittanza termica Ug (secondo EN 673) Triple-glazed unit vetrocamera + verto esterno temperato no vetro esterno con pellicola autopulente no vetro interno laminato (sicuro) No air inlet tipo di ventilazione twice verniciatura del legno
-
-
PWP P50 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PWP P50 ABMX
- 1.1 W/m²K trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) Triple-glazed unit vetrocamera + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet tipo di ventilazione
-
-
PWP U41 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PWP U41 ABMX
- 1.1 W/m²K trasmittanza termica Uw 0.60 W/m²K trasmittanza termica Ug (secondo EN 673) Triple-glazed unit vetrocamera + verto esterno temperato brakno vetro esterno con pellicola autopulente no vetro interno laminato (sicuro) No air inlet tipo di ventilazione
-
