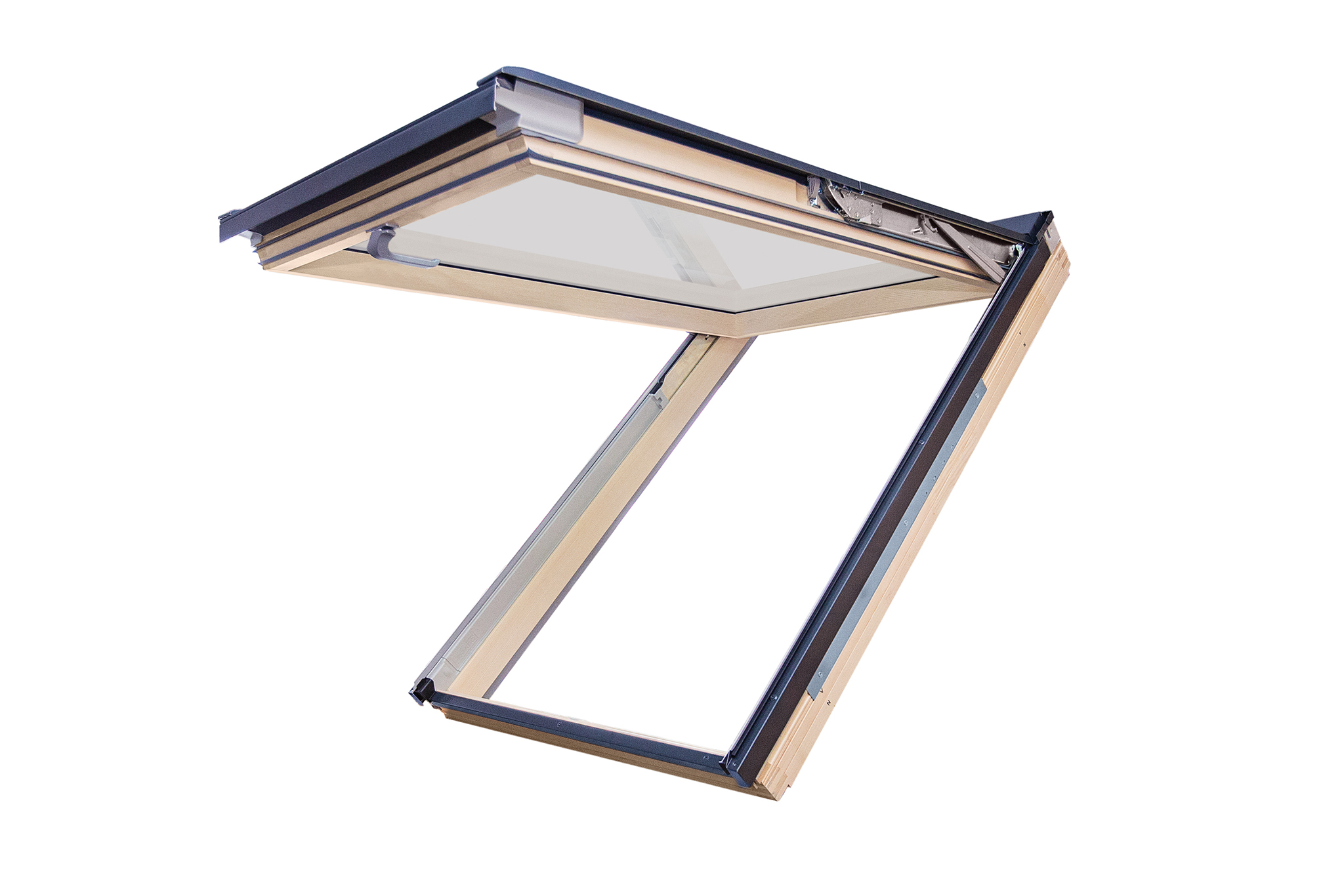

Top hung and pivot windows
ENERGY-EFFICIENT DESIGN
- Advanced design to ensure two opening methods:
- top hung up to 45° to result in better use of an additional attic space.
- pivot allowing the sash to be rotated through 180°.
- Opening method can be changed using easily accessible switch.
- Easy window operation by means of the handle situated in the base of the sash and featuring two-step micro-opening.
- Made of top quality pinewood and vacuum impregnated.

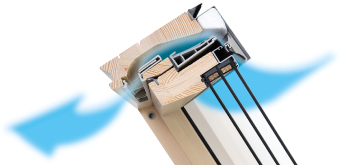

- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
EASY TO KEEP CLEAN
- The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.
INCREASED SAFETY
- Toughened external glass with lifetime hail resistance warranty.
- Increased burglary resistance thanks to patented topSafe system.
FUNCTIONAL ACCESSORIES
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-55°, window in a special version installed in pitches from 55°-85°.
THREE CLADDING COLOURS TO CHOOSE FROM
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Attic rooms, particularly bedrooms, children’s rooms and living rooms.
-
FPP-X MAX P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FPP-X MAX P50 APMX
- 1.0 W/m²K trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) 40 dB isolamento acustico Rw Triple-glazed unit vetrocamera + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet. With air inlet upon request. tipo di ventilazione twice verniciatura del legno + microapertura
-
-
FPP-V MAX U41 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FPP-V U41 MAX APMX
- 1.1 W/m²K trasmittanza termica Uw 0.60 W/m²K trasmittanza termica Ug (secondo EN 673) 35 dB isolamento acustico Rw Triple-glazed unit vetrocamera + verto esterno temperato no vetro esterno con pellicola autopulente no vetro interno laminato (sicuro) With air inlet. With no air inlet upon request. tipo di ventilazione twice verniciatura del legno + microapertura
-
