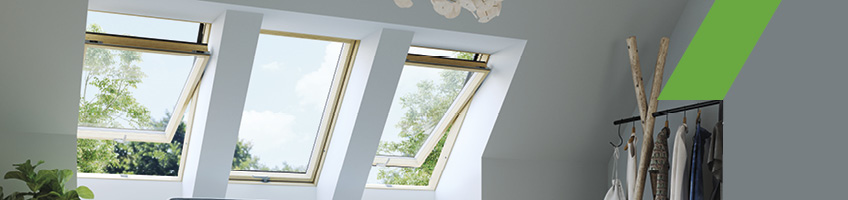

Windows with raised axis of rotation
ERGONOMIC DESIGN
- Richly equipped pivot window with axis of rotation situated above the centre of the window, so even a tall person can easily walk up to the window edge.
- Easy window operation by means of the new handle situated in the base of the sash and featuring two-step micro-opening.
- The hinge enables the sash to be rotated and left open. The sash when opened in position from 0° to 45° is supported by innovative supporting system.
- The sash can be rotated through 160° and locked, allowing safe and convenient cleaning of the outer glass.
SAFETY AND EASE OF INSTALLATION
- When installed in roofs with pitches 39˚- 43˚ the window meets the requirements of DIN 5034-1 standard, according to which the bottom window edge has to be placed 95 cm above the floor level and the top minimum 220 cm.
HIGH ENERGY-EFFICIENCY AND DURABILITY

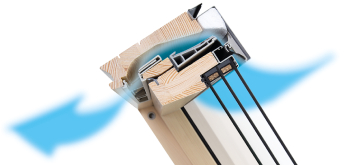

- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
- Quadruple sealing system. Glazing seal provides additional tightness in extreme weather conditions and reduces micro vibrations of the cladding profiles during heavy rain.
LONG LASTING PROTECTION
- Made of vacuum impregnated pinewood.
INCREASED SAFETY
- Increased burglary resistance thanks to patented topSafe system.
FUNCTIONAL ACCESSORIES
- Wide range of additional accessories.
INSTALLATION RANGE
- 20-65˚
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Recommended for buildings where particular emphasis is placed on saving thermal energy.
-
FYP-X P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FYP-X P50 APMX
- 1.0 W/m²K trasmittanza termica Uw 0.55 W/m²K trasmittanza termica Ug (secondo EN 673) 40 dB isolamento acustico Rw Triple-glazed unit vetrocamera + verto esterno temperato + vetro esterno con pellicola autopulente + vetro interno laminato (sicuro) No air inlet. With air inlet upon request. tipo di ventilazione twice verniciatura del legno + microapertura
-
-
FYP-V U41 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FYP-V U41 APMX
- 1.1 W/m²K trasmittanza termica Uw 0.60 W/m²K trasmittanza termica Ug (secondo EN 673) 36 dB isolamento acustico Rw Triple-glazed unit vetrocamera + verto esterno temperato no vetro esterno con pellicola autopulente no vetro interno laminato (sicuro) With air inlet. With no air inlet upon request. tipo di ventilazione twice verniciatura del legno + microapertura
-
